■ 基本信息
啟動子: | URA3 |
復制子: | 2μ |
質粒分類: | 酵母系列，釀酒酵母表達載體 |
質粒大小: | 5181bp |
原核抗性: | Amp |
真核抗性: | URA3 |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 酵母細胞 |
5'測序引物: | M13F:TGTAAAACGACGGCCAGT |
3'測序引物: | 根據序列設計引物 |
■ 質粒屬性
質粒宿主: | 酵母菌 |
質粒用途: | 蛋白表達 |
片段類型: |
|
片段物種: |
|
原核抗性: | Amp |
真核抗性: | URA3
|
熒光標記: |
|
■ 質粒簡介
Restriction digests of the clone give the following sizes (kb): BamHI--5.3; XbaI--5.3; PstI--5.3; HindIII--5.3.This is a Escherichia coli/yeast episomal shuttle vector with multiple restriction sites for cloning.Constructed by filling in and blunt-end ligating pUC18 linearized at NdeI, a 1.4 kb RsaI fragment of the 2 micron circle, and a 1.1 kb HindIII/SmaI fragment containing URA3. A XbaI site in 2u and a PstI site in URA3 were removed.The yeast genomicsequence is in nt 286-1383 (where the A of the ATG of lacZ' is number 1), the 2 micron sequence goes from nt 1384-2768, and pUC18 includes nt 2769-285.

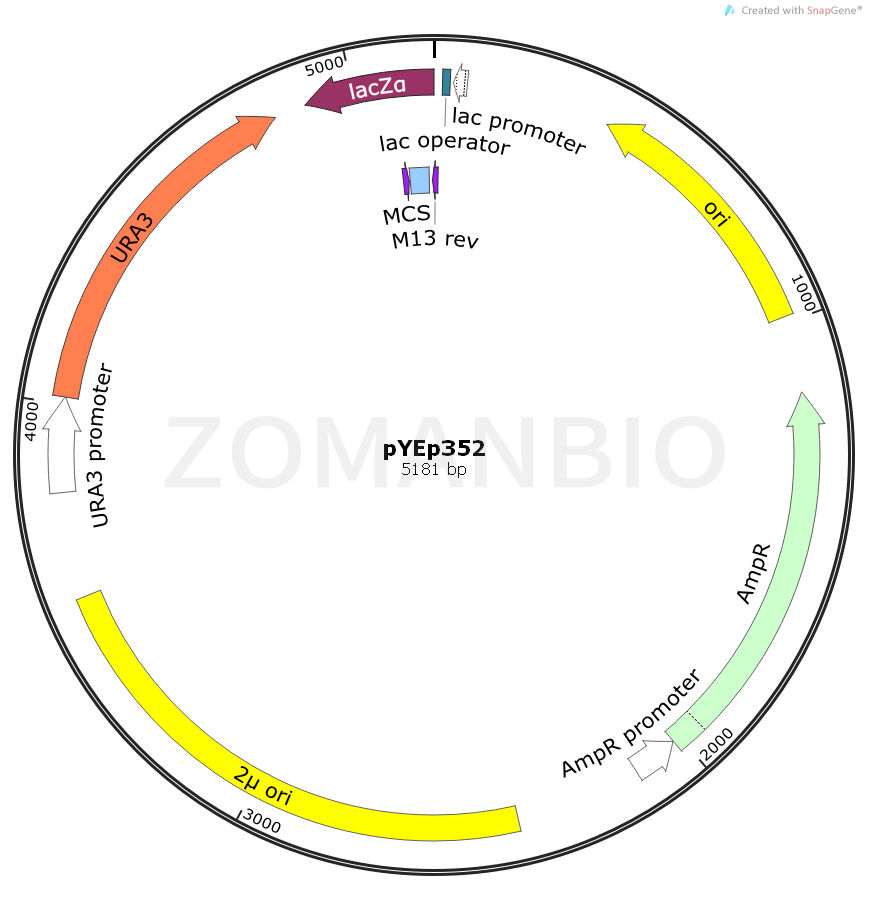

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK954pYEp352釀酒酵母質粒.txt
